Example 04

Endpoint monitor

Check an HTTP endpoint once, on an interval, or with cron and inspect status, latency, and response history.

PatternOne-time, interval, and cron schedules

Resulthttp://localhost:8787/monitor/demo

Guided build

Build it from an empty Ayjnt project

Follow the steps in order. Every source block below is the actual checked example file, so the tutorial and runnable project cannot quietly drift apart.

Scaffold and install

Create an empty harness and add only the dependencies this example needs.

terminal

bunx ayjnt new monitor-harness --empty
cd monitor-harness
bun install

# delete agents/alive after adding the files below

Schedule checks where state lives

One agent method handles one-time, interval, and cron schedules and records a bounded run history.

Create agents/monitor/agent.ts with this source:

agents/monitor/agent.ts

import { Agent, callable } from "ayjnt";

type Cadence =
  | { kind: "once"; delaySeconds: number }
  | { kind: "interval"; everySeconds: number }
  | { kind: "cron"; expression: string };
type Monitor = {
  id: string;
  url: string;
  label: string;
  cadence: Cadence;
  scheduleId: string;
  createdAt: number;
};
type Run = {
  id: string;
  monitorId: string;
  at: number;
  ok: boolean;
  status: number;
  durationMs: number;
  preview: string;
};
type State = { monitors: Monitor[]; runs: Run[] };

export default class MonitorAgent extends Agent<State> {
  override initialState: State = { monitors: [], runs: [] };

  @callable()
  async create(
    label: string,
    url: string,
    cadence: Cadence,
  ): Promise<Monitor> {
    const parsed = new URL(url);
    if (!["http:", "https:"].includes(parsed.protocol)) {
      throw new Error("Only HTTP and HTTPS URLs are supported.");
    }
    const id = crypto.randomUUID();
    const schedule =
      cadence.kind === "once"
        ? await this.schedule(cadence.delaySeconds, "check", id)
        : cadence.kind === "interval"
          ? await this.scheduleEvery(cadence.everySeconds, "check", id)
          : await this.schedule(cadence.expression, "check", id);
    const monitor = {
      id,
      url: parsed.toString(),
      label: label.trim() || parsed.hostname,
      cadence,
      scheduleId: schedule.id,
      createdAt: Date.now(),
    };
    this.setState({ ...this.state, monitors: [monitor, ...this.state.monitors] });
    return monitor;
  }

  async check(monitorId: string): Promise<void> {
    const monitor = this.state.monitors.find((item) => item.id === monitorId);
    if (!monitor) return;
    const started = Date.now();
    let run: Run;
    try {
      const response = await fetch(monitor.url, {
        headers: { "user-agent": "ayjnt-scheduler-example/1.0" },
      });
      const text = await response.text();
      run = {
        id: crypto.randomUUID(),
        monitorId,
        at: Date.now(),
        ok: response.ok,
        status: response.status,
        durationMs: Date.now() - started,
        preview: text.replace(/\s+/g, " ").slice(0, 180),
      };
    } catch (error) {
      run = {
        id: crypto.randomUUID(),
        monitorId,
        at: Date.now(),
        ok: false,
        status: 0,
        durationMs: Date.now() - started,
        preview: error instanceof Error ? error.message : String(error),
      };
    }
    this.setState({ ...this.state, runs: [run, ...this.state.runs].slice(0, 100) });
  }

  @callable()
  async runNow(monitorId: string): Promise<void> {
    await this.check(monitorId);
  }

  @callable()
  async remove(monitorId: string): Promise<void> {
    const monitor = this.state.monitors.find((item) => item.id === monitorId);
    if (monitor) await this.cancelSchedule(monitor.scheduleId).catch(() => {});
    this.setState({
      monitors: this.state.monitors.filter((item) => item.id !== monitorId),
      runs: this.state.runs.filter((item) => item.monitorId !== monitorId),
    });
  }
}

Make schedules visible

The UI creates monitors, runs them immediately, removes schedules, and explains their cadence in human terms.

Create agents/monitor/app.tsx with this source:

agents/monitor/app.tsx

import { useState } from "react";
import { useAgent } from "@ayjnt/monitor";

export default function Monitor() {
  const agent = useAgent();
  const [label, setLabel] = useState("");
  const [url, setUrl] = useState("https://api.github.com/repos/northclock/ayjnt");
  const [kind, setKind] = useState<"once" | "interval" | "cron">("interval");
  const [value, setValue] = useState("60");
  const state = agent.state;
  if (!state) return <main style={styles.main}>Connecting…</main>;

  const submit = async (event: React.FormEvent) => {
    event.preventDefault();
    const cadence = kind === "once"
      ? { kind, delaySeconds: Number(value) }
      : kind === "interval"
        ? { kind, everySeconds: Number(value) }
        : { kind, expression: value };
    await agent.call("create", [label, url, cadence]);
    setLabel("");
  };

  return (
    <main style={styles.main}>
      <header style={styles.header}><div><small style={styles.eyebrow}>SCHEDULER</small><h1 style={styles.h1}>Endpoint monitor</h1></div><span>{state.monitors.length} active</span></header>
      <form onSubmit={submit} style={styles.form}>
        <input value={label} onChange={(e) => setLabel(e.target.value)} placeholder="Label" style={styles.input} />
        <input value={url} onChange={(e) => setUrl(e.target.value)} placeholder="https://…" style={{ ...styles.input, flex: 1 }} required />
        <select value={kind} onChange={(e) => { setKind(e.target.value as typeof kind); setValue(e.target.value === "cron" ? "0 * * * *" : "60"); }} style={styles.input}>
          <option value="once">Once after</option><option value="interval">Every</option><option value="cron">Cron</option>
        </select>
        <input value={value} onChange={(e) => setValue(e.target.value)} aria-label="Cadence value" style={{ ...styles.input, width: 120 }} />
        <button style={styles.primary}>Add</button>
      </form>
      <section style={styles.grid}>
        {state.monitors.map((monitor) => {
          const latest = state.runs.find((run) => run.monitorId === monitor.id);
          return (
            <article key={monitor.id} style={styles.card}>
              <div style={styles.cardTop}><span style={{ ...styles.dot, background: latest?.ok ? "#55c99d" : latest ? "#ef766a" : "#d5d9df" }}></span><strong>{monitor.label}</strong><code style={styles.code}>{monitor.cadence.kind}</code></div>
              <a href={monitor.url} style={styles.url}>{monitor.url}</a>
              {latest ? (
                <div style={styles.result}><b>{latest.status || "ERR"}</b><span>{latest.durationMs}ms</span><p>{latest.preview}</p><time>{new Date(latest.at).toLocaleString()}</time></div>
              ) : <p style={styles.waiting}>Waiting for first run.</p>}
              <div style={styles.actions}><button onClick={() => agent.call("runNow", [monitor.id])}>Run now</button><button onClick={() => agent.call("remove", [monitor.id])}>Remove</button></div>
            </article>
          );
        })}
      </section>
    </main>
  );
}

const styles = {
  main: { fontFamily: "system-ui, sans-serif", maxWidth: 1080, margin: "0 auto", padding: "42px 22px", color: "#172033" },
  header: { display: "flex", justifyContent: "space-between", alignItems: "end", paddingBottom: 22, borderBottom: "1px solid #dfe2e7" },
  eyebrow: { color: "#225dd8", fontFamily: "monospace", letterSpacing: "0.14em" },
  h1: { margin: "6px 0 0", fontSize: 38 },
  form: { display: "flex", flexWrap: "wrap" as const, gap: 8, padding: "22px 0" },
  input: { padding: "10px 11px", border: "1px solid #d1d6dd", borderRadius: 8, background: "white" },
  primary: { padding: "10px 17px", border: 0, borderRadius: 8, background: "#225dd8", color: "white" },
  grid: { display: "grid", gridTemplateColumns: "repeat(auto-fit,minmax(310px,1fr))", gap: 13 },
  card: { border: "1px solid #dde1e6", borderRadius: 12, padding: 17, background: "#fbfbf8" },
  cardTop: { display: "flex", gap: 9, alignItems: "center" },
  dot: { width: 9, height: 9, borderRadius: "50%" },
  code: { marginLeft: "auto", fontSize: 10, color: "#697180" },
  url: { display: "block", margin: "11px 0", color: "#225dd8", fontSize: 11, whiteSpace: "nowrap" as const, overflow: "hidden", textOverflow: "ellipsis" },
  result: { background: "#f1f2ee", borderRadius: 8, padding: 12, fontSize: 12 },
  waiting: { color: "#818894", fontSize: 12 },
  actions: { display: "flex", gap: 6, marginTop: 12 },
};

Run the harness

terminal

bun run build
bun run dev

# open http://localhost:8787/monitor/demo

The build step generates bindings, migrations, client hooks, and environment types before the runtime starts.

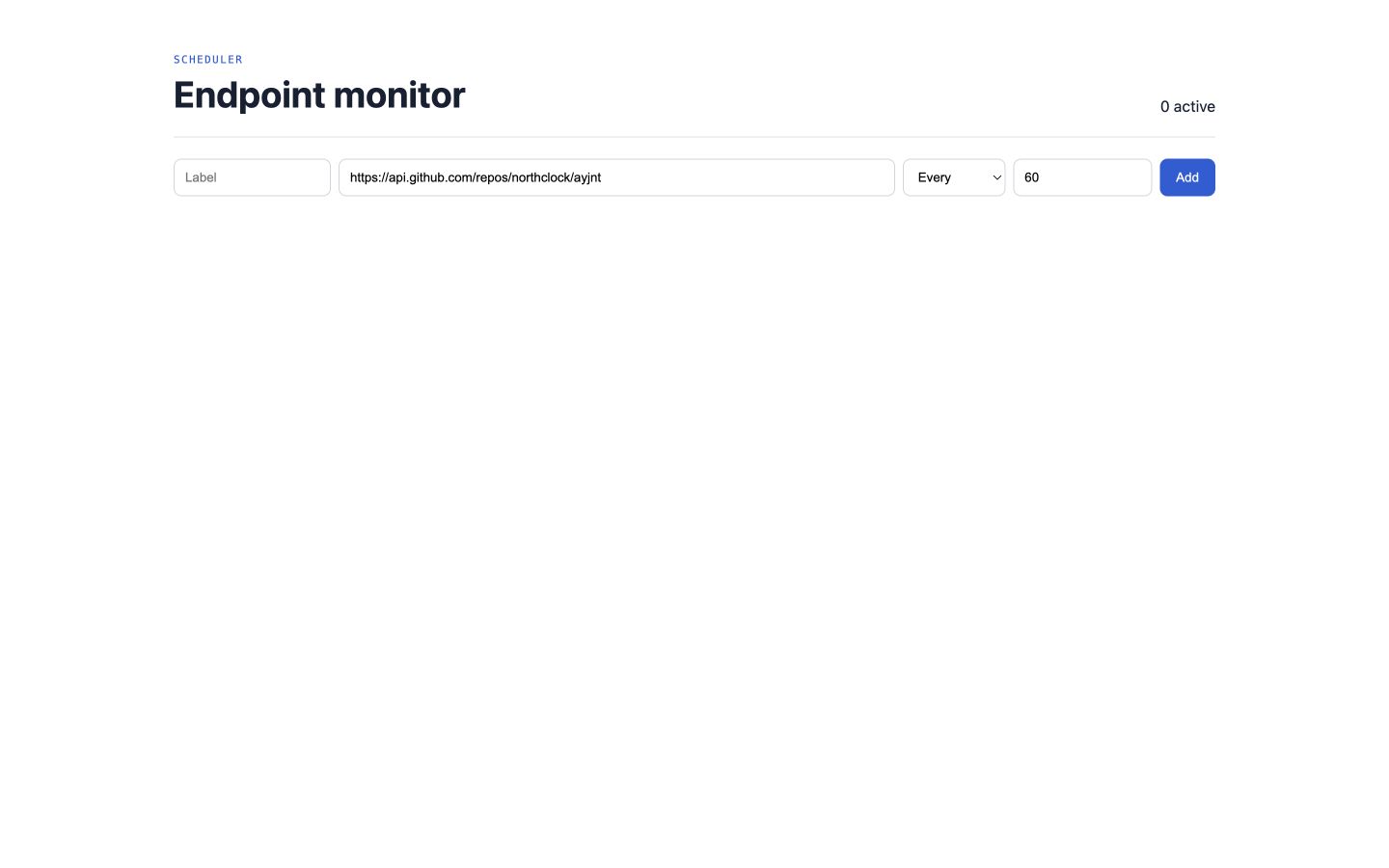

Endpoint monitor running in the browser — Expected browser result after completing the tutorial.

Project shape

agents/monitor/agent.tsagents/monitor/app.tsx

Verify your result

Create a monitor for a public HTTP endpoint.
Press Run now and inspect status, latency, and response preview.
Create a short interval, wait for the next scheduled entry, then remove it.
